Description
Buy the Gigabyte H610M Gaming WIFI DDR4 motherboard with LGA1700 socket, PCIe 4.0 and HDMI 2.1. Perfect for Intel 12th-14th Gen CPUs. Order now!
Availability: In Stock

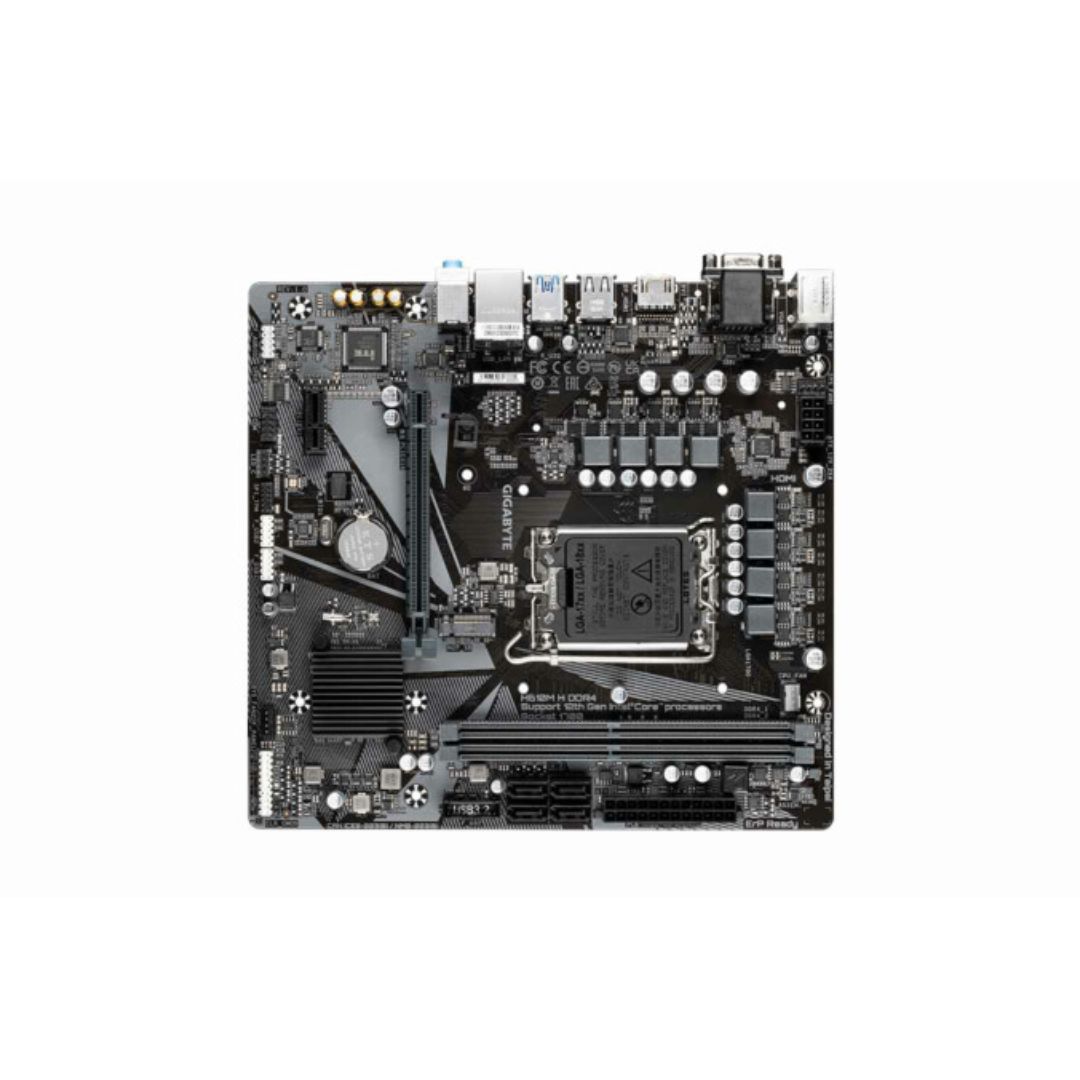

Gigabyte H610M Gaming WIFI DDR4 (rev. 1.0) Motherboard
Brands: Gigabyte
₨ 14,999.00
Other people want this. 15 people have this in their carts right now.
Description
Additional information
Additional information
| Product Type | Gaming Motherboard |
|---|---|
| CPU Compatibility | LGA1700 socket: 14th, 13th, 12th Generation Intel® Core™, Pentium® Gold, Celeron® Processors (Check GIGABYTE website for CPU support list) |
| Chipset | Intel® H610 Express Chipset |
| Memory Support | DDR4 3200/3000/2933/2666/2400/2133 MT/s |
| Onboard Graphics | Intel® HD Graphics, up to triple-display (DisplayPort 1.2, HDMI 2.1) |
| Dimensions | 10.43 x 10.43 x 2.12 inches |
| Weight | About 1.71 pounds |
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Wireless Communication | Intel® Wireless-AC 9560, 2.4/5 GHz Dual-Band, Bluetooth 5.1 |
| Expansion Slots | 1 x PCIe x16 (PCIe 4.0, x16), 1 x PCIe x1 (PCIe 3.0, x1) |
| Storage Interface | 1 x M.2 PCIe 3.0 x4/x2 SSD, 1 x M.2 PCIe 3.0 x2 SSD, 4 x SATA 6Gb/s connectors |
| USB Ports | 4 x USB 3.2 Gen 1 (2 rear, 2 internal), 2 x USB 2.0/1.1 (internal), 6 x USB 2.0 (4 rear, 2 internal) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 2 x addressable RGB Gen2 LED strip headers, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only), 1 x serial port header, 1 x Clear CMOS jum |
| Back Panel Connectors | 1 x PS/2 keyboard port, 1 x PS/2 mouse port, 2 x SMA antenna connectors (2T2R), 2 x DisplayPorts, 1 x HDMI port, 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water cooling flow rate detection, fan fail warning, fan speed control (depends on fan) |
| BIOS | 128 Mbit flash, licensed AMI UEFI BIOS |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash |
| Bundled Software | Norton® Internet Security (OEM version), LAN bandwidth management software |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX, 24.4cm x 22.0cm |
| Base Warranty | 1 Year |
| Manufacturer | GIGABYTE |
