Description
Discover the DS-D5C75RB/B 75-inch 4K DLED display, perfect for interactive presentations and collaborative spaces, featuring multi-touch, Android 13 & more.
Availability: In Stock

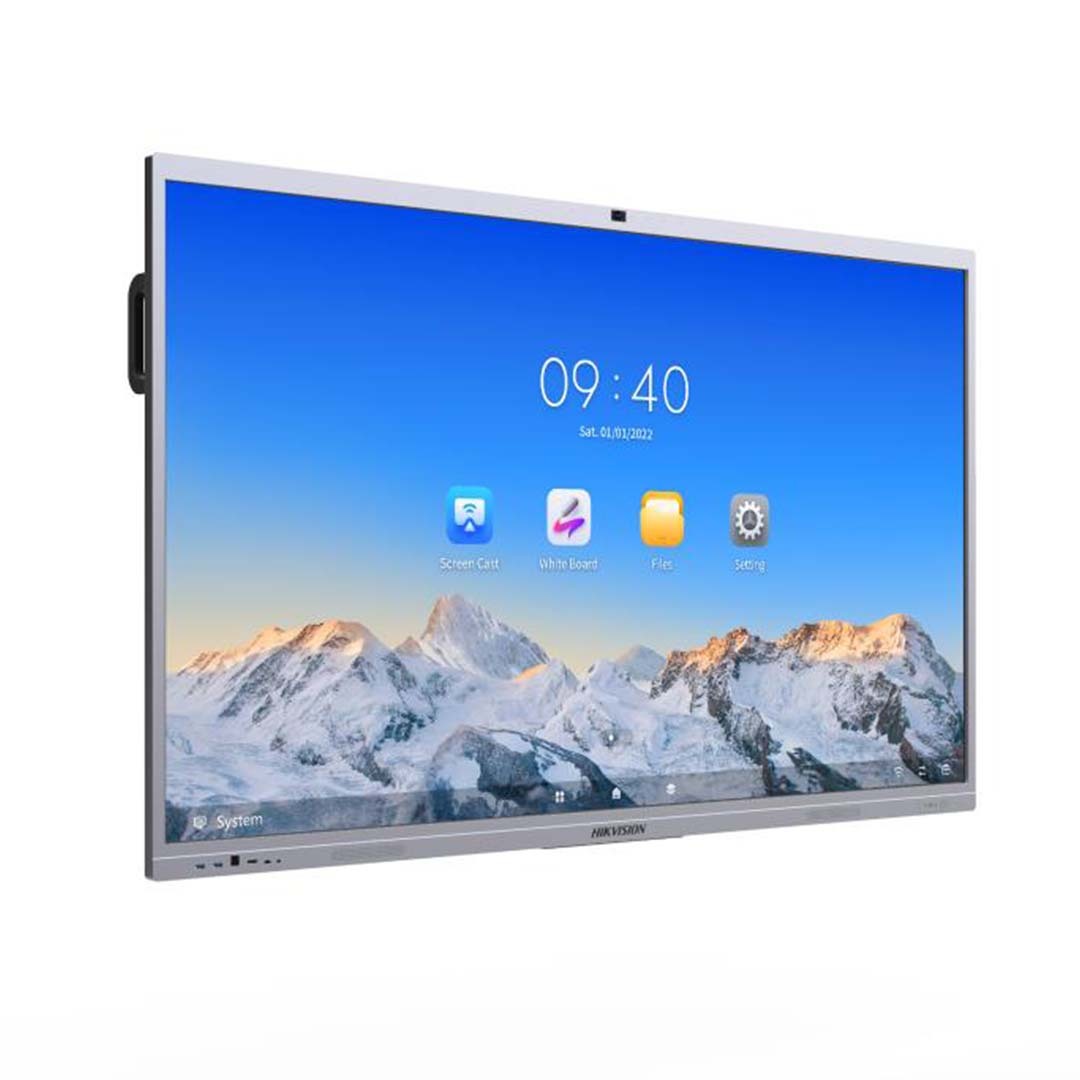

Hikvision 75″ 4K Interactive Smart Board (Display) – DS-D5C75RB/B
Brands: Hikvision
₨ 216,999.00
Other people want this. 15 people have this in their carts right now.
Description
Additional information
Additional information
| Model | DS-D5C75RB/B |
|---|---|
| Screen Size | 75 inch |
| Backlight | DLED |
| Pixel Pitch | 0.14325(H) × 0.42975(V) mm |
| Resolution | 3840 × 2160 @ 60 Hz |
| Brightness | 400 cd/m² （Typ.） |
| Color Depth | 10 bit |
| Display Color | 1.07 G |
| Response Time | 5 ms |
| Panel Type | VA |
| Contrast Ratio | 5000:1 (Static), 30,000:1 (Dynamic) |
| Color Gamut | 72% NTSC (CIE1931) (Typ.) |
| Refresh Rate | 60 Hz |
| Viewing Angle | 178° (H)/178° (V) |
| Aspect Ratio | 16:9 |
| Surface Hardness | 9H (Pencil), 7 (Mohs) |
| Surface Glass | Anti-Glare Glass |
| Surface Haze | 25% Haze |
| Glass Bonding Method | Zero Lamination |
| Display Area | 1650.24mm x 928.26mm |
| Working Duration | 7 × 16 H |
| Transmittance | 88% ± 3 |
| Lifespan | 50,000 hours |
| Touch Type | Infrared Touch Screen |
| Touch Point | Up to 50-point multi-touch |
| Touch Response Time | ≤ 2 ms |
| Minimum Touch Object | ≥ 1.5 mm (≥ 90% touching area) |
| Touch Precision | ± 0.5 mm (≥ 90% touching area) |
| Touch Resolution | 32767 × 32767 |
| Operation System | Android 13.0 |
| Memory | 8 GB |
| Built-In Storage | 128 GB |
| Processor | Quad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz） |
| GPU | Mali-G610 MC4 |
| HDCP Version | 2.3 |
| Camera Pixel | 48MP for Photos, 8MP for Video |
| Camera Function | Support intelligent switching between Android system, OPS, and PC |
| Field Angle | 93.4° (diagonal), 84.5° (horizontal), 54.1° (vertical) |
| Distortion | ≤2.5% |
| Camera Resolution Ratio | Up to 4K |
| Microphone Specification | Omni-directional 8-array layout |
| Mic Function | Echo reduction and smart noise-cancellation |
| Voice Distance | 12 m |
| Sampling Rate | 32 K |
| Mic Sampling Rate | 16 bit |
| Loudspeaker | Built-in 2 × 20 W + 25W loudspeaker |
| Bluetooth | Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1 |
| NFC | Support screen mirroring by Android phones |
| Light Sensor | Yes |
| Image Processing Technology | Support 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging, support shadow correction |
| Audio Processing Technology | Support dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection |
| Video & Audio Input | HDMI In (HDMI 2.0) × 3, VGA In × 1, DP In (DP 1.2) × 1, Audio In × 1 |
| Video & Audio Output | HDMI Out (HDMI 2.0) × 1, Audio Out × 1, SPDIF Out × 1 |
| Control Interface | TOUCH-USB 3.0 × 3, RS232 × 1 |
| Network Interface | LAN (1000 Mbps) × 2, WIFI AP & Station, 2.4G/5G, WIFI 6 |
| Data Transmission Interface | USB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (supports USB 2.0, DP 1.2, charging functions; side charging 15 W, front charging 65 W) |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Standby Consumption | ≤ 0.5 W |
| Average Consumption | < 150W |
| VESA | 800 mm × 400 mm (4 × M8-25 mm) |
| Product Dimensions | 1713.2 mm × 1034.5 mm × 82.5 mm |
| Accessory | Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5M HDMI cable (2.0), power cable, bluetooth remote control |
| Package Dimensions (W × H × D) | 1937 mm × 264 mm × 1222 mm |
| Net Weight | 51.23 kg |
| Gross Weight | 67.62 kg |
| Working Temperature | 0 °C to 40 °C (32 °F to 104°F) |
